Main Functions
Supports IEC 61850 Edition 1 and Edition 2
Can be used with IEC61850 compliant IED devices from any manufacturer, supporting IEC 61850 Edition 1 and Edition 2
GPU Rendering
IEC61850 Server Simulator takes full advantage of your GPU when rendering the interface. This results in a smooth user experience while using less power than before

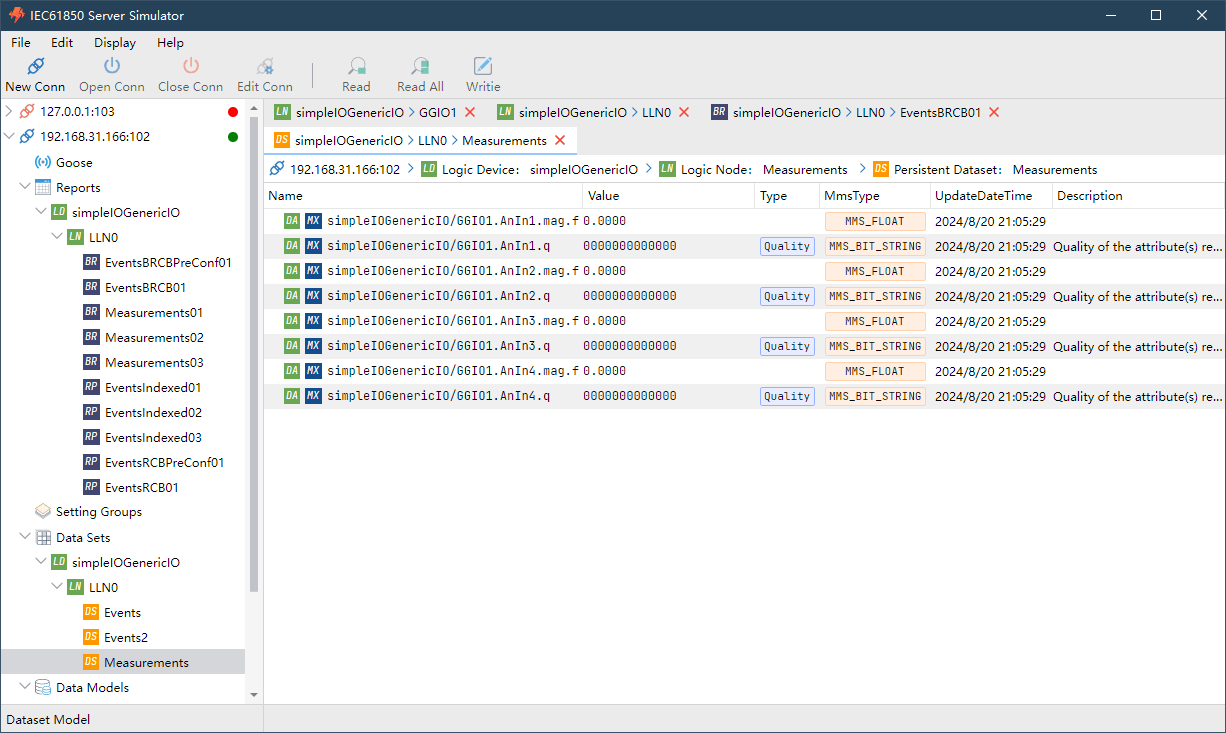

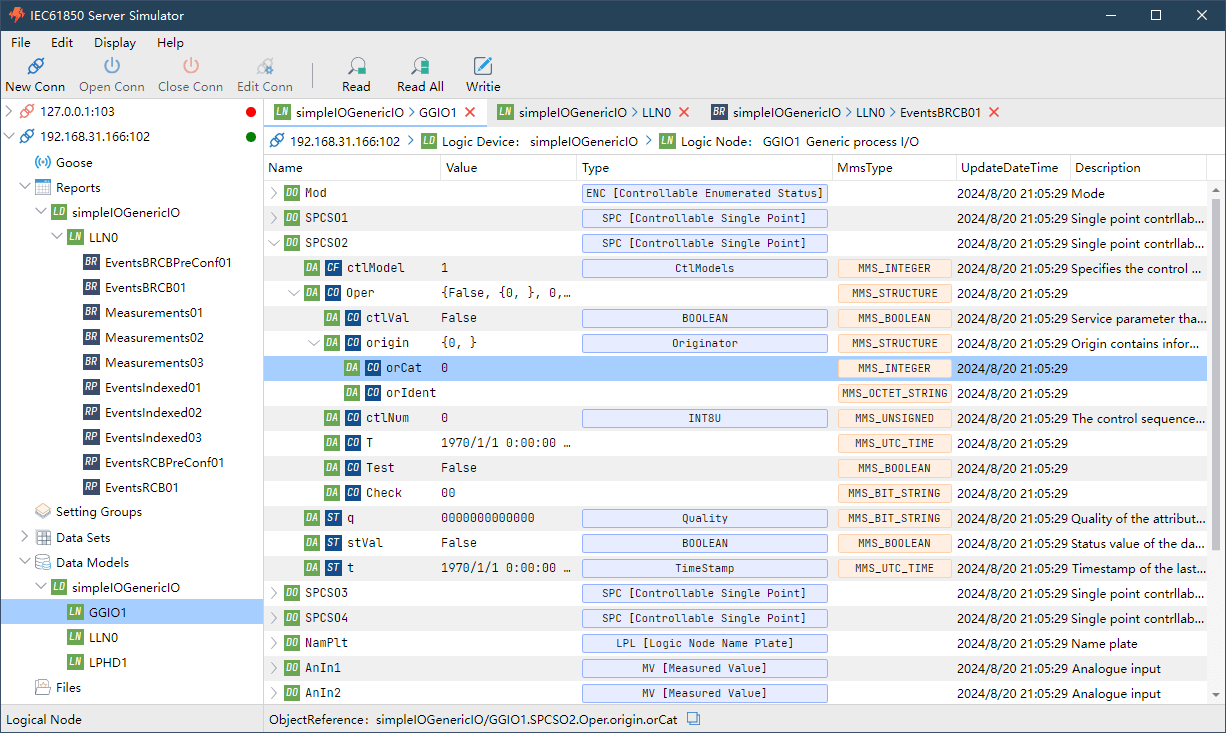

Dataset Model
The object model is displayed in a hierarchical structure, the description text is displayed as defined by the standard, the protocol data type and the underlying MMS type are compared, and the data update time is displayed.

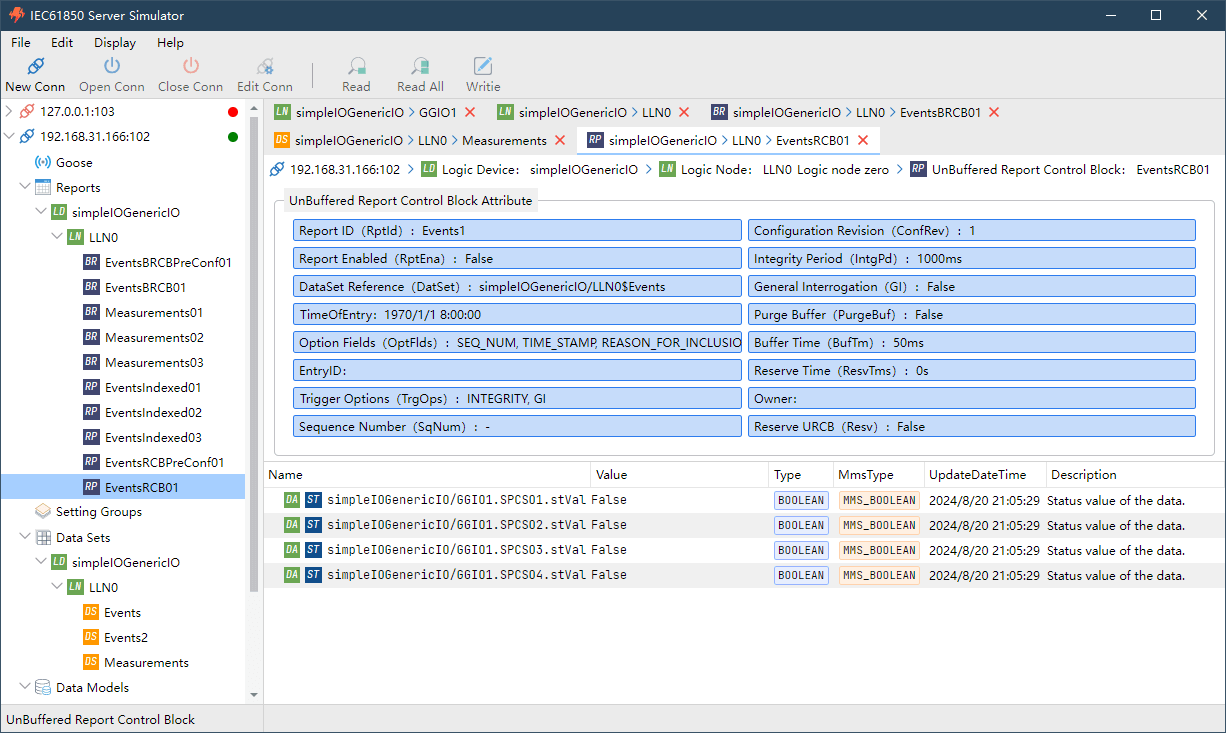

Report Control
Supports cached report control blocks (BRCB) and uncached report control blocks (URCB), view the data sets referenced by the report control blocks, and browse their data changes in real time

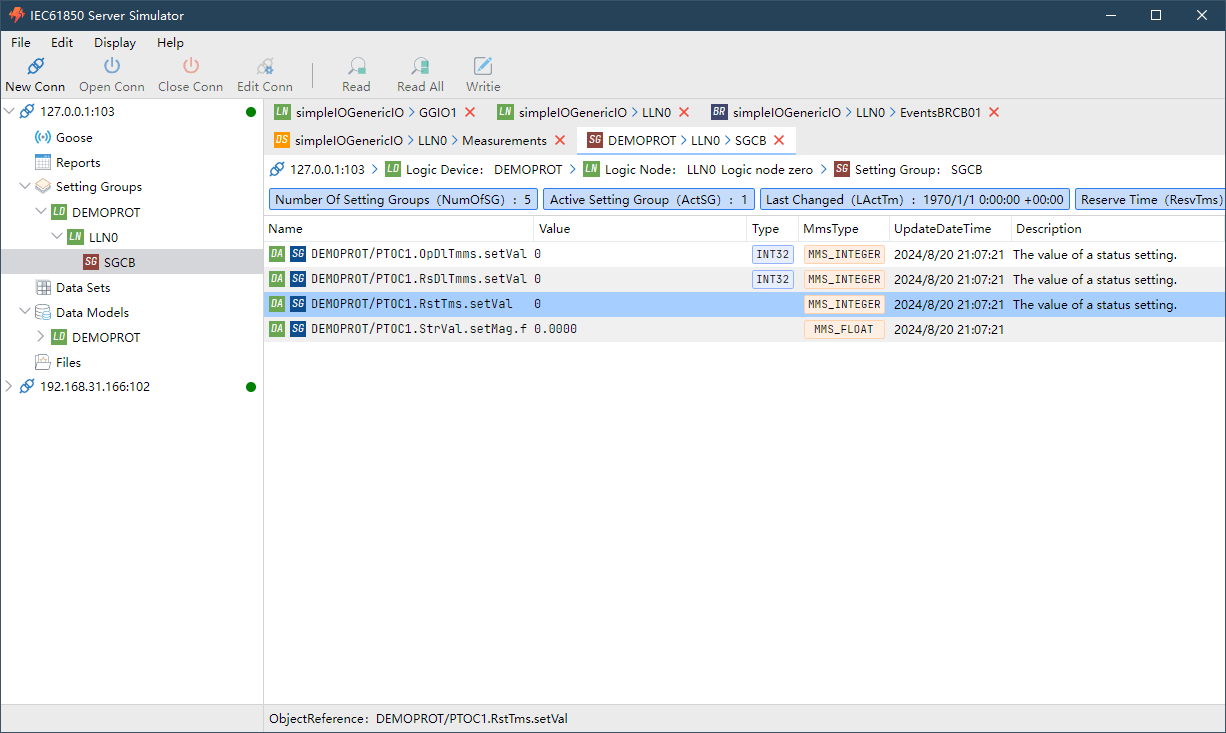

Setting group control
Supports viewing the current setting groups, editing and activating setting groups; viewing the data objects and data attributes associated with the setting groups
GOOSE
Supports viewing the properties of the current GOOSE control block; subscribes and receives data from the device, and views the changes in the data in the data set in real time
- Can be used for IED devices produced by any manufacturer that comply with the IEC61850 standard.
- Supports IEC 61850 Edition 1 and Edition 2.
- In-depth simulation of multiple IEDs simultaneously.
- Displays the object model in a hierarchical structure and displays the description text as defined by the standard.
- The perfect and user-friendly interface design brings you a smooth operation experience.
- Supports cached report control blocks (BRCB) and unbuffered report control blocks (URCB), view the data sets referenced by the report control blocks, and browse their data changes in real time.
- Quickly and conveniently configure the report control block, enable the report, configure the trigger options, configure the option fields included in the report, set the integrity cycle, perform a general call, etc.
- You can easily view the current existing data sets and quickly create or edit data sets.
- Supports viewing the current set value groups, editing and switching set value groups; viewing the data objects and data attributes associated with the set value groups.

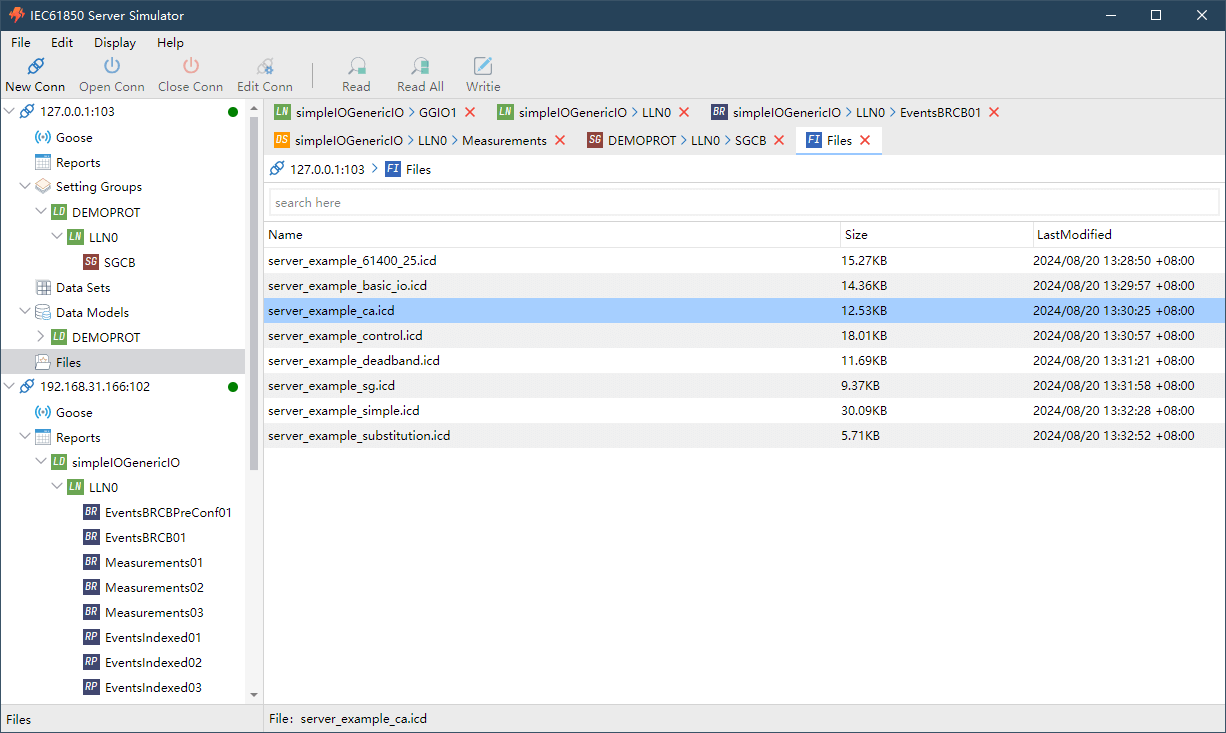

- Supports file services, including downloading, deleting files and other operations.
- Supports viewing the properties of the current GOOSE control block; subscribing and receiving data from the device, and viewing the changes in the data in the data set in real time.
- Supports user authentication during connection.
