Comtrade Chart
$19.99,free evaluation

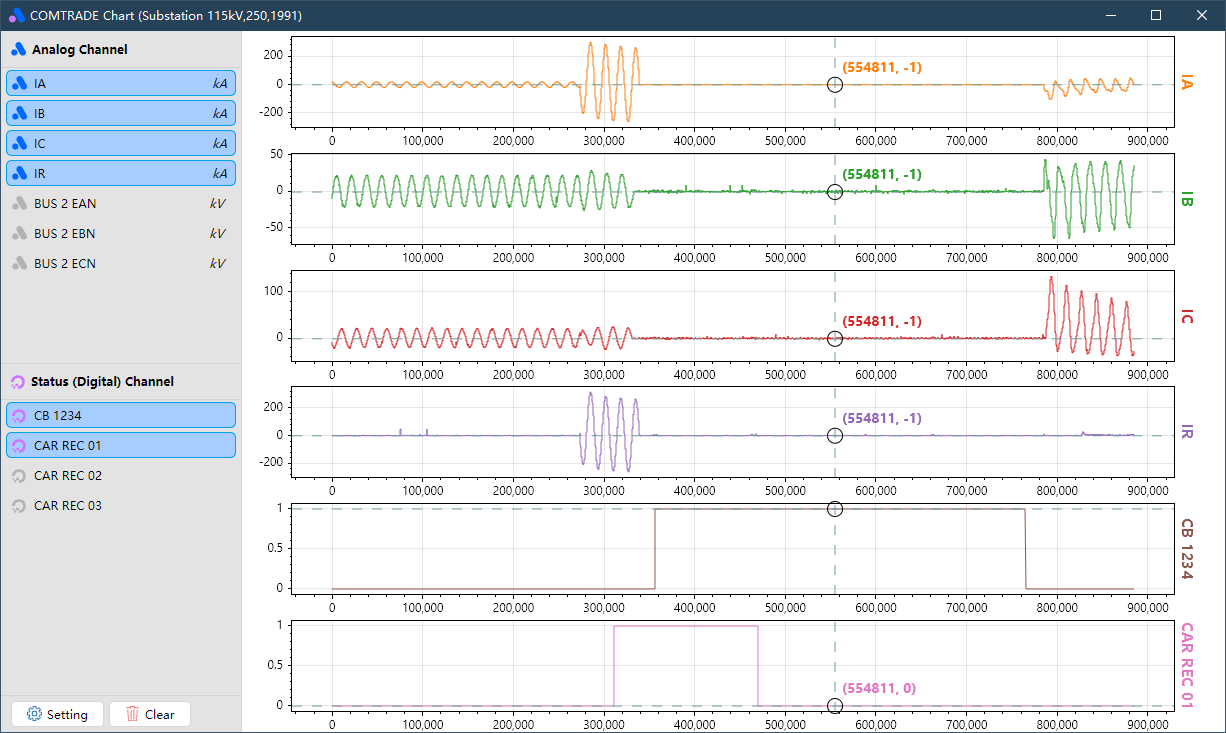

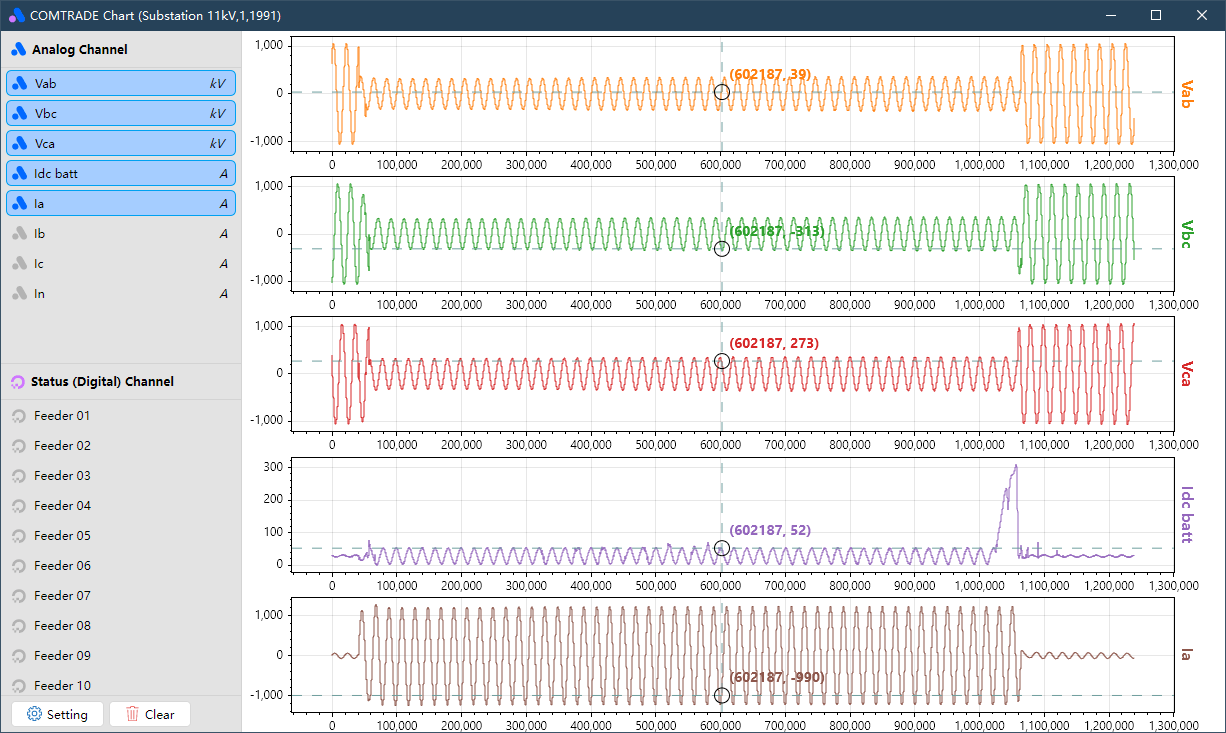

Quick look at COMTRADE data
Comtrade Chart supports the IEEE Std C37.111-1991/1999/2013 specification.
Simple and smooth operation experience
Supports fast drawing of millions of data points, supports X-axis or Y-axis zooming, fast selection of specific areas, and tracking of mouse position.

Main Functions

  • Supports IEEE Std C37.111-1991/1999/2013 specifications.
  • Read ASCII or binary COMTRADE files.
  • View analog and digital channel lists from COMTRADE configuration files.
  • Export charts to SVG, BMP, JPEG, and PNG graphic formats.
  • Export displayed observations to Microsoft Excel as CSV files.
  • Supports fast plotting of millions of data points.
  • Simple and smooth operation experience, support X-axis or Y-axis zoom, quick selection of specific areas, and tracking of mouse position.
